Description
Roller gates steel brand M-80; M-80P is made of single-walled profile. Profile material — cold-rolled galvanized steel painted by powder coating. Lateral displacement of the slats is prevented by the use of end covers of steel, which provide high stability of the canvas.
Description
Roller gates steel brand M-80; M-80P is made of single-walled profile. Profile material — cold-rolled galvanized steel painted by powder coating. Lateral displacement of the slats is prevented by the use of end covers of steel, which provide high stability of the canvas.
Description
Roller gates steel brand M-80; M-80P is made of single-walled profile. Profile material — cold-rolled galvanized steel painted by powder coating. Lateral displacement of the slats is prevented by the use of end covers of steel, which provide high stability of the canvas.
Group of companies FireTechnics is an explosion diagram for roller doors M-80; M-80P
Press and hold the mouse to rotate the picture. Move your mouse or hit «Play» below the picture rotated itself. Click now to close the hint scheme.
Press and hold the mouse to rotate the picture. Move your mouse or hit «Play» below the picture rotated itself. Click now to close the hint scheme.
Press and hold the mouse to rotate the picture. Move your mouse or hit «Play» below the picture rotated itself. Click now to close the hint scheme.
Technical characteristics of the roller gates M-80;
M-80P
| M-80 | М-80Р | ||
| Material | Galvanized steel powder coated in RAL | As standard | As standard |
| Galvanized steel without painting | Optional | Optional | |
| Maximum dimensions of the gates | Width maximum, Mm | 8000 | 8000 |
| Height maximum, Mm | 6000 | 6000 | |
| Dimensions and weight of profile | Wall thickness, mm | 0,7 | 0,7 |
| Thickness of lamellas, mm | 14 | 14 | |
| Slat height, mm | 80 | 80 | |
| Covering surface, mm | 75 | 75 | |
| Weight per square meter of cloth, kg | 8,6 | 6 | |
| Weight per meter of profile, kg | 0,64 | 0,45 |

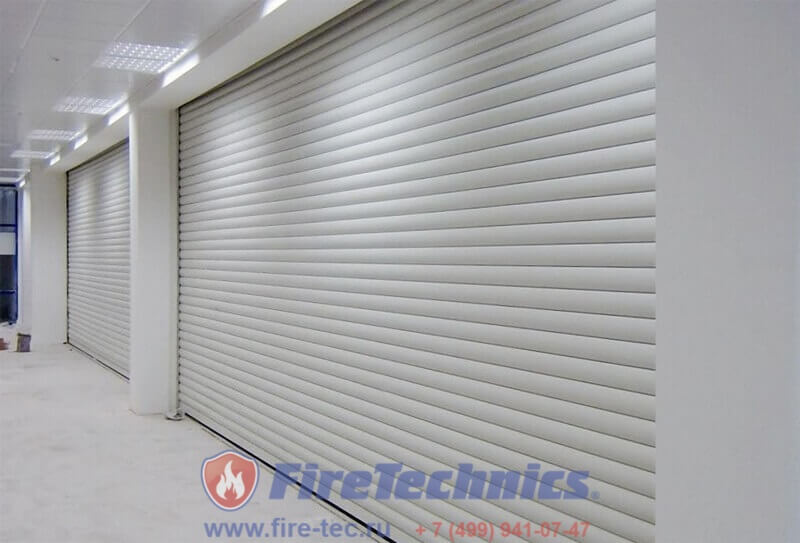

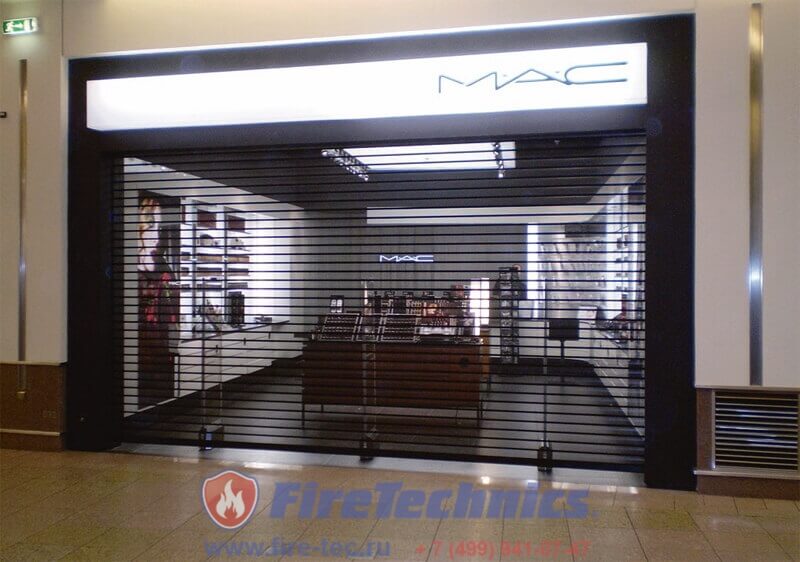

Roller gates are made of steel profile, perforated (M-80P) and without perforation (M-80) is a great choice for interior spaces that do not require additional insulation.
It is important! Roller gates steel grade M-80; M-80P is supplied to the object is almost assembled, which greatly facilitates the installation of the Roller gates M-80; M-80P, increases the speed and correctness of execution of mounting and commissioning works.

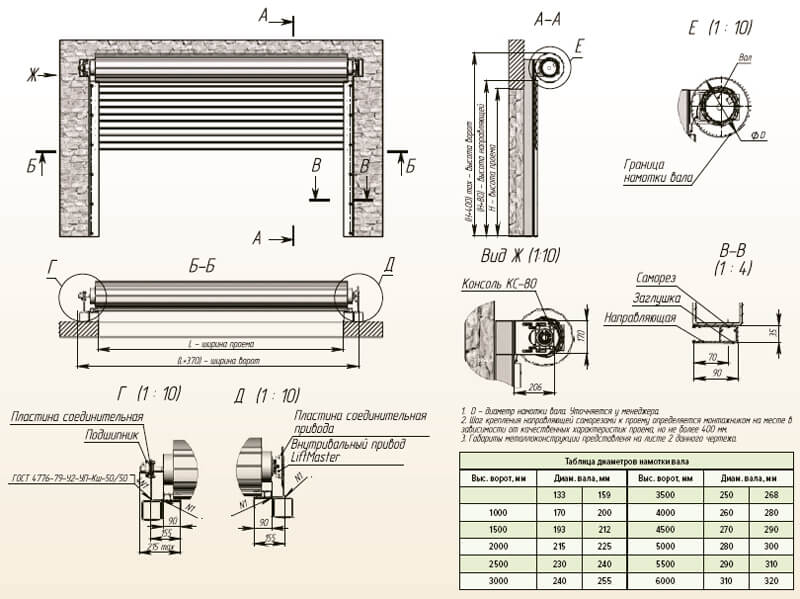

Drawings and options of installation of the roller gates M-80;
M-80P
If You need to get the blueprints, wiring diagrams and installation instructions, please click the link:
