Technical specifications for roller doors AL-120
Description
Industrial Roll-up gates of the AL-120 model are made of double-wall aluminum profile with a thickness of 23 mm. filled with solid polyurethane foam.
Application Objects
aircraft Hangar ⬩ special purpose Garage (fire crews, military equipment) ⬩ Agriculture ⬩ Sorting centers ⬩ Housing complexes (underground Parking) ⬩ Stores (loading and unloading area) ⬩ Production facilities ⬩ garages for special equipment ⬩ Shopping center ⬩ Sports ⬩ Medical ⬩ Theaters and cultural facilities ⬩ Depot Автосервис car Service ⬩ Airport<
Terms of use
- Prevent unauthorized access
- Providing heat, light and noise protection
- Overlap of both standard and non-standard openings, in a special design with the use of several canvases and sliding trusses
Main features
| Material | Aluminum with double wall, with internal filling made of rigid PU, with powder coating according to RAL classic | Does not corrode |
| The resistance to heat transfer | Confirmed by tests with the issuance of a certificate | 0,30 m2 K / W. |
| Maximum dimensions of the gate | Maximum width (one web), mm | 11 500 |
| The maximum width (number of paintings with sliding girders), mm | More, than 40 000 | |
| Maximum height, mm | 15 000 | |
| Dimensions, weight of the profile | Wall thickness, mm | 1 |
| The thickness of the fins, mm | 23 | |
| The height of the fins, mm | 120 | |
| Covering surface, mm | 98 | |
| Weight per square meter of canvas, kg | 10,6 | |
| Weight of the linear meter of the profile, kg | 1,06 | |
| Consoles | OKD-6, OKD-8, KS-104, КО-120 | standardly |
| KO-120У | optional | |
| Side profile caps | Plastic retainer | standardly |
| Electric drive | Axial | GFA MFZ Ovitor |
| Intravenous | Somfy RollHan |
|
| Types of emergency lift | handle (collar) chain reducer |
| For regions with high wind load (II, III, IV, V) | The door leaf is reinforced with 1.5 mm thick extruded profile slats. To prevent the web from escaping from the guides, special anti-explosion hooks are used |
| Additional equipment for gates | Protective box Windows made of polycarbonate glass Photocells Optical contact bar Traffic light Switch with key |
| Features | Simple and durable Complex nodes and elements are missing Manufacturer’s warranty 1 year Production Russian Federation |
| Installation and Service | Qualified specialists in the state who will perform the installation accurately and on time The necessary equipment is available, even for working at height |
Roller gates, AL-120 is designed for installation in exterior and interior doorways of industrial and warehouse facilities, hangars, shops, etc. to prevent unauthorized access and to provide heat light and sound proofing.
Roller gates are composed of such major parts as a sheet, the motor function of the emergency lift, guide rails, bearing shaft and console. As additional components and accessories can be used radio control, photocells, contact strip safety switches with key. Feature roller doors that distinguish them from the gates of other types, is the minimum space above and to one side of the opening, required for installation and functioning of the entire structure; this allows you to install them where the impossible installation of sectional, sliding or swing gates.
It is important! Roll-up doors insulated brand AL-120 are supplied to the object is almost assembled, which greatly facilitates the installation of the Roller gates, AL-120, increases the speed and correctness of execution of mounting and commissioning works.

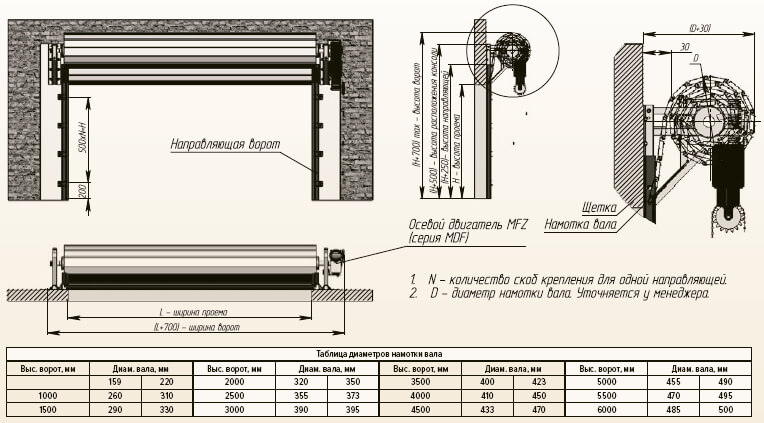

Drawings and options of installation of fire curtains EI60; EI90; EI120 (without irrigation)
If You need to get the blueprints, wiring diagrams and installation instructions, please click the link:

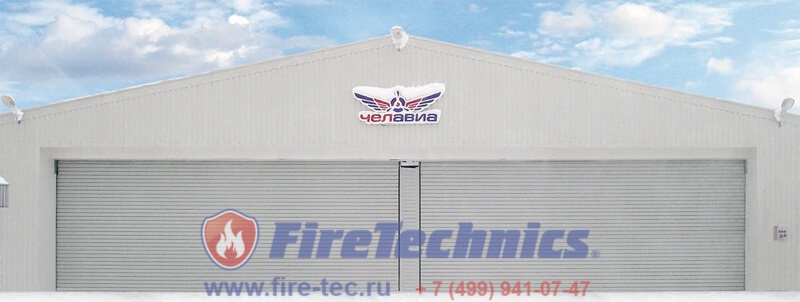

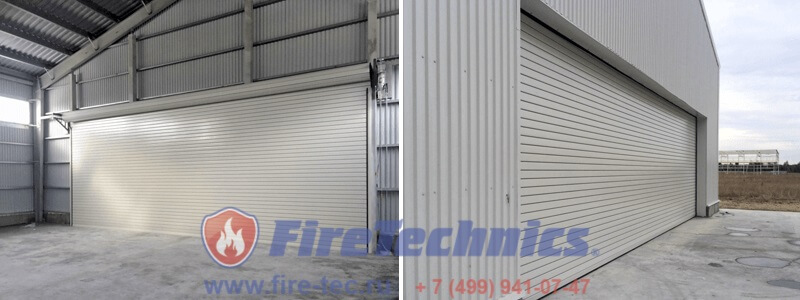

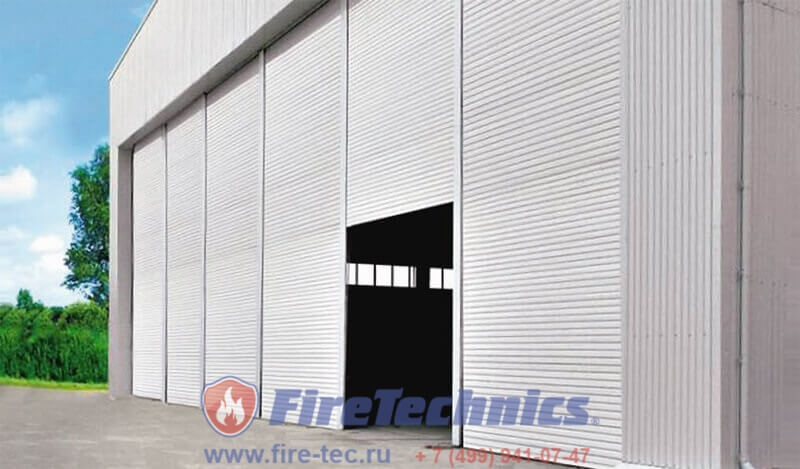

Photo roller gates FireTechnics AL-120
