System Description

Automatic Sectional fire gates of the FireTechnics-S model, with the following fire resistance limit: EI60 certificate of conformity no. C-RU.PB25.V. 03135

Designed to prevent the spread of fire and smoke, providing the opportunity to conduct a safe evacuation of people , rescue property and conduct fire extinguishing.

As a rule, they are used to cover openings in underground Parking lots of shopping centers and residential complexes , Parking lots, shopping centers, warehouses, industrial workshops, etc.

System Description

Automatic Sectional fire gates of the FireTechnics-S model, with the following fire resistance limit: EI60 certificate of conformity no. C-RU.PB25.V. 03135

Designed to prevent the spread of fire and smoke, providing the opportunity to conduct a safe evacuation of people , rescue property and conduct fire extinguishing.

As a rule, they are used to cover openings in underground Parking lots of shopping centers and residential complexes , Parking lots, shopping centers, warehouses, industrial workshops, etc.

System Description

Automatic Sectional fire gates of the FireTechnics-S model, with the following fire resistance limit: EI60 certificate of conformity no. C-RU.PB25.V. 03135

Designed to prevent the spread of fire and smoke, providing the opportunity to conduct a safe evacuation of people , rescue property and conduct fire extinguishing.

As a rule, they are used to cover openings in underground Parking lots of shopping centers and residential complexes , Parking lots, shopping centers, warehouses, industrial workshops, etc.

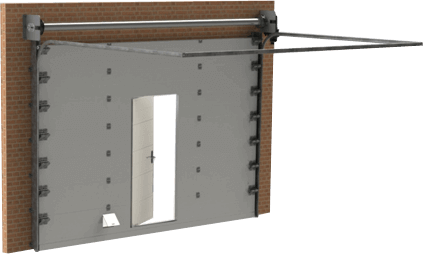

Group of companies FireTechnics is an explosion diagram for section fire gate with a gate FireTechnics-S EI60

Press and hold the mouse to rotate the picture. Move your mouse or hit “Play” below the picture rotated itself. Click now to close the hint scheme.

Press and hold the mouse to rotate the picture. Move your mouse or hit “Play” below the picture rotated itself. Click now to close the hint scheme.

Press and hold the mouse to rotate the picture. Move your mouse or hit “Play” below the picture rotated itself. Click now to close the hint scheme.

Specifications sectional fire gates FireTechnics-S EI60

Working Principle

The lower web is carried out by means of the actuator in automatic mode. The final position of a cloth fixed end of the electromagnetic switches. Motor control is carried out via the control unit.

In case of power failures possible installation of an emergency power supply.

Main features

  • On request it is possible to tie the gate with a refractory fire and lock the hatch.
  • Highly Reliable mechanism allows to produce more than 25 thousand cycles of opening and closing the gate.
  • Color: any of RAL scale (standard colour: RAL 7035; RAL 9010)

Fabric

Made of flexibly connected sections of steel sheet of thickness 0,5 mm mineral wool with density 170-180 kg/m3. company Paroc®.

At the ends of the panels are installed with a thickness of 2 mm.

Weight fabric: 28 kg/m2.

Leaf thickness: 60 mm

Panel height: 400 mm

Installation

Standard, high, low, vertical.

Desired location in the upper part of the opening for mounting the gate: 550 mm. minimum space Required for mounting of the actuator: minimum 450 mm space Required with adjacent from the drive side: at least 250 mm.

Fire resistance: EI60.

Dimensions

Width, max. to 7 m.
Height, max. to 5,5 m.
For accurate sizes please contact the managers of the company FireTechnics, depending on Your needs we can make the sectional fire gates custom.

It is important! Automatic sectional doors fire FireTechnics-S EI60 supplied to the object is almost assembled, which greatly facilitates the installation of fire rated sectional doors, increases the speed and correctness of execution of mounting and commissioning works.

Drawings and installation of Sectional gates fire EI60

If You need to get the blueprints, wiring diagrams and installation instructions, please click the link:

Get
Сертификат-Штора-Fireshield-EI-60-без-орошения

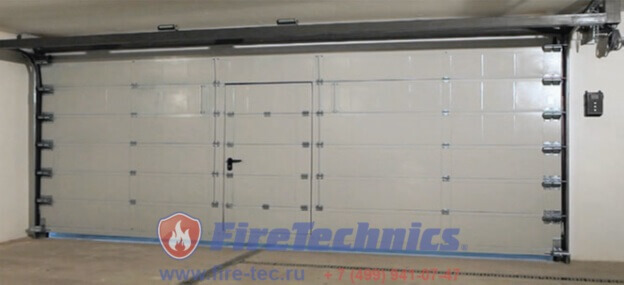

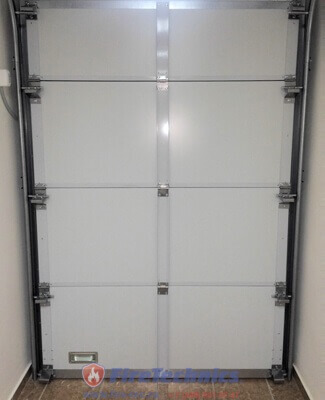

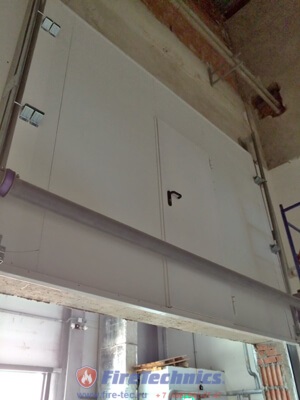

Photo fire sectional doors FireTechnics-S EI60

Photo fire sectional doors FireTechnics-S EI60

Video about fire gate FireTechnics

Fire gate with DISCOUNT only now!

ATTENTION!

Action «order with a guaranteed 5% discount» ends in exactly:

About sectional fire gates

Sectional fire doors EI60

Modern fire protection sectional doors are used as an effective means of protection against fire and smoke propagation in rooms adjacent to the source of fire. High quality fire protection is provided by the construction of special fire-resistant panels with a layer of non-flammable insulation (minvata). And externally, it has the appearance of a conventional sectional gate.

Features and advantages of sectional fire doors ei60

The presence of a rubber seal and a thermal expansion tape along its entire perimeter adds to the fire Resistance of the structure. When heated, the latter increase in size and reliably seal the entrance.

Due to the fact that when you open the canvas rises up and starts under the ceiling, the gate does not require much space inside the room and space at the opening. At the same time, an extensive selection of types of fire-fighting lifting and sectional doors allows you to mount them in a room with any lintel size.

In addition, the advantages of such gate structures include the following facts:

  • designing and manufacturing them from advanced materials using innovative technologies;
  • the use of special equipment in the design that prevents the cable break and the spring break. This means that the gate works reliably without accidental falls of the canvas;
  • lighter weight compared to numerous analogues with fire protection, however, does not impair the anti-burglary quality of the structure;
  • increased strength, sound and thermal insulation;
  • production in accordance with Russian and international quality standards, which is confirmed by certificates of compliance at the gates of sectional fire-fighting ei from the company Fire Technics;
  • it can be installed in almost any opening and is easy to install. Specialists of “Fire tekniks” install a similar structure for an average of 2 hours;
  • long service life with minimal maintenance costs;

Ability to choose the most appropriate management option. Like other types of fire doors, sectional doors can be operated manually, automatically and remotely.
Based on numerous positive reviews from customers of fire-fighting lifting and sectional doors of Fire Technics, it can be argued that such structures are ideal for use throughout the Russian territory.

Секционные Противопожарные Ворота FireTechnics-S EI60, фото 1

Drives for sectional fire doors with wicket

To open and close the opening during everyday use, or to securely seal it in the event of a fire, sectional doors with fire protection are equipped with axial drives.

Axle drive

Axial fire-fighting drives are characterized by increased traction characteristics. The device is equipped with self-contained control elements in order to close the gate in case of fire or disconnection of the drive from the power supply source.

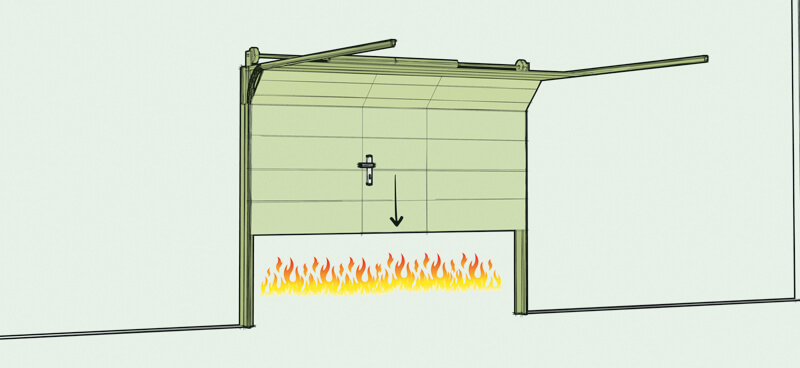

If a fire occurs, the signal from the fire sensor is sent to the management unit. And that in turn gives the signal to the engine to close. It is possible to program the management unit so that it does not react to any other controls, such as buttons, etc.

Operating conditions of sectional doors with fire protection

  1. Sectional fire doors ei 60 with a gate must open and close smoothly, without any jamming and jerks.
  2. If some extraneous sounds appear during the operation of the gate structure, you must suspend the use of it and contact the specialists from the organization that installed or serviced them.
  3. In order to prevent the possibility of an accident, you need to make sure that when opening or closing the gate, animals and people are not in the area of their work.
  4. During the opening and closing of the gate, there should be no foreign objects under them.
  5. When installing additional equipment that is not intended for joint use with fire-fighting sectional doors, you must first consult the technical service of the manufacturer.
  6. Gates that perform the function of fire protection in case of fire in the building are subject to early write-off. You must call a specialist to remove and replace them.
  7. Moving parts of the gate need to be cleaned and maintained in time to avoid jamming.
  8. In order to avoid injury during the operation of the gate, it is forbidden to touch their moving parts with your hands during movement.
  9. In order to ensure that fire-fighting gates with a lift section with a gate work reliably and smoothly for many years, it is recommended to conduct their technical inspection and maintenance at least once every quarter.
  10. When working with the gate structure, it is unacceptable to delay the web. The result of such manipulations may lead to injury or damage to the structure.
  11. Children should not be allowed to access control devices for automatic gates-remote controls and buttons.
  12. It is forbidden to subject the gate structure to blows and prevent its free opening and closing.
  13. To ensure reliable and long-lasting operation of the automatic gate drive, carefully read the manufacturer’s instructions for their operation.
  14. If sectional fire doors or their individual components are not used for their intended purpose, the manufacturer is not responsible for their reliable operation and integrity.
