FireTechnics automatic fire curtains (Fireshield) – H “Horizontal” are designed to prevent the spread of fire and smoke from one part of the building to another.


FireTechnics automatic fire curtains (Fireshield) – H “Horizontal” are designed to prevent the spread of fire and smoke from one part of the building to another.


FireTechnics automatic fire curtains (Fireshield) – H “Horizontal” are designed to prevent the spread of fire and smoke from one part of the building to another.

Group of companies FireTechnics is an explosion diagram for fire curtains, Horizontal

Press and hold the mouse to rotate the picture. Move your mouse or hit “Play” below the picture rotated itself. Click now to close the hint scheme.

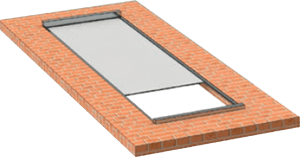

Fire curtains “Horizontal”

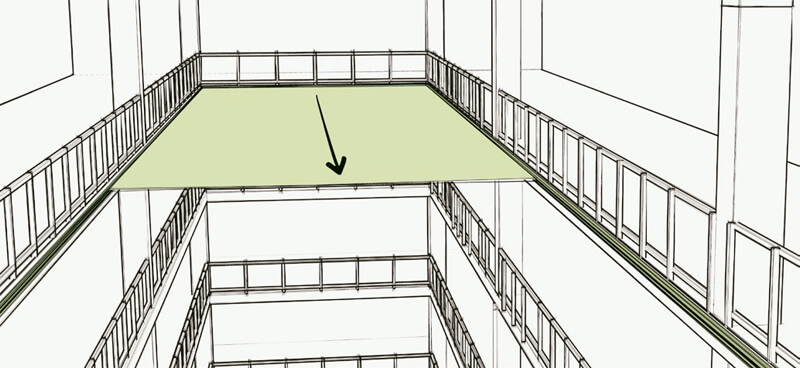

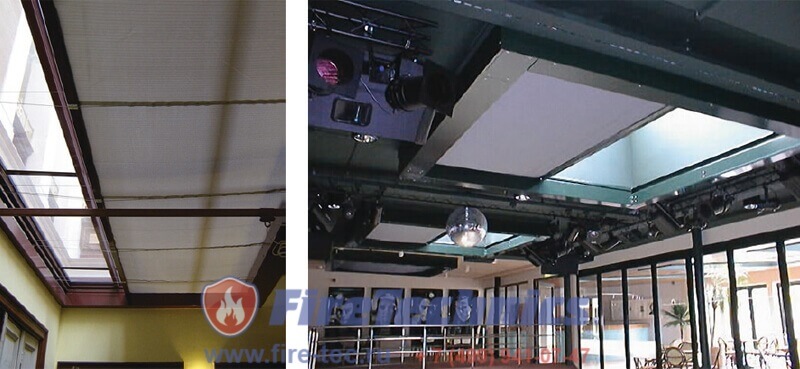

Mounted on ceiling openings and openings in the floor.

Moving the canvas is horizontal.

When the fire alarm is triggered, the engine installed in the small box moves the cutting bus with the canvas along the guides to the trap using a cable system, thereby blocking the opening. The return of the curtains to the open position is done by winding the web on a shaft installed in a large box using a second electric motor.

The speed of overlapping aperture averages 0.15 m / s.

In case of power outages, the system is back-up from the battery.

Limits of fire resistance

  • EI60 (without irrigation with water)
  • EI120 (with unilateral use of water irrigation from existing sprinkler or deluge fire extinguishing systems of the building, water flow is not less than 0.08 l / m2 per second).


Max. Dimensions of the opening 3×3 m.
The box is large (in section) 200×220 mm.
Small box (in section) 150×150 mm.
For accurate sizes please contact the managers of the company FireTechnics, depending on Your needs we can produce horizontal fire curtains custom.


At the limit of fire resistance EI120 (with water irrigation):

Material: Firetex 1100 (manufactured in Germany)

Weight of fabric: 660 g / m.

Thickness of material: 0,63 mm

The cloth is single-layered. The fabric is certified as non-flammable and non-toxic.

To obtain high durability when exposed to high temperatures, a thin stainless wire is woven into each fiberglass yarn.

At the limit of fire resistance EI60 (without water irrigation):

Name: Firetex 60 (manufacturer Germany)

Weight of fabric: 2500 g / m²

Thickness: 3 mm.

To obtain high durability when exposed to high temperatures, a thin stainless wire is woven into each fiberglass yarn.

The inner layer of the fabric consists of thermoactive composite materials, which at 160-180 degrees Celsius expand to 50 mm and provide reliable protection against heat flow. Fabric canvas is certified as non-flammable and non-toxic.


The constructive scheme implies the installation of two boxes (large and small) for one curtain. Each box consists of three bent galvanized sheet steel 1.5 mm panels up to 3 m long, which are joined with each other in the manufacture of long curtains. Both ends of the body are closed with covers to ensure the necessary sealing. The side covers also serve to perceive the torque of the internal engine. The dimensions of the boxes depend on the size of the overlapping opening.

Color execution: any color according to RAL color scale or galvanized steel.


Made of sheet steel 2 mm thick (casing – 1.5 mm).

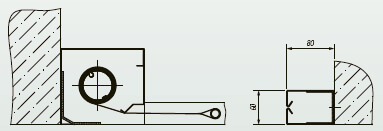

Dimensions in cross-section: 80х60 mm.

Color execution: any color according to RAL color scale or galvanized steel.

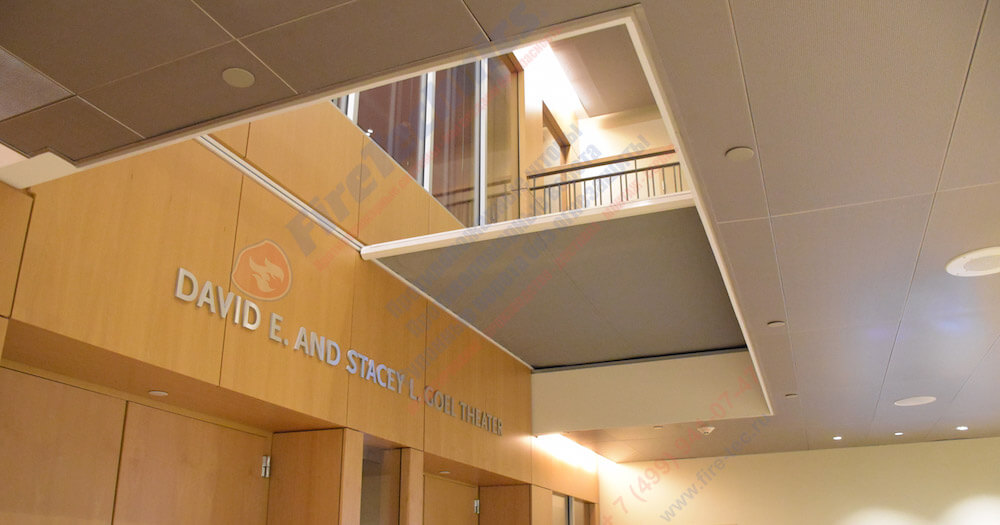

Mounting the box and guides

The standard installation scheme is in the aperture, but an individual variant is possible, while the degree of fire resistance of the structure to be erected must be not less than the degree of fire resistance of the curtain itself.

Important! Fireproof curtain type FireTechnics (Fireshield) — H “Horizontal” are delivered to the object is almost assembled, which greatly facilitates the installation of fire curtains, increases the speed and correctness of execution of mounting and commissioning works.

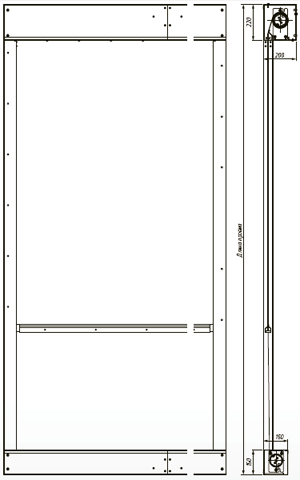

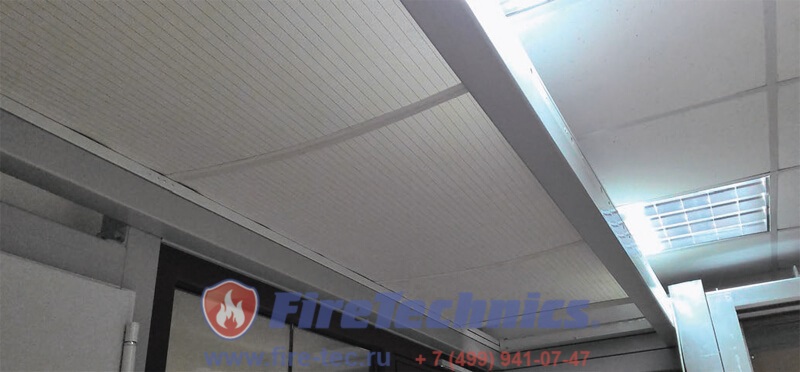

Drawings and options of installation of fire curtains, Horizontal

If You need to get the blueprints, wiring diagrams and installation instructions, please click the link:

Fire curtains «Horizontal»
Get certificates

Video about FireTechnics fire curtains

About horizontal fire curtains

Buy fireproof horizontal curtains with high protective properties of flame and smoke can be with a different fire resistance level. Its value is reflected in the marking in the form of letter and numerical designations of the limiting states:

“E” – shows the period through which the barrier loses integrity (measured in minutes);

“I” – indicates the period after which the curtain loses the thermal insulation capacity (measured in minutes).

Based on the needs and desire of the customer, the designs of such curtains with fireproof qualities can be supplied in 2 variations:

  • EI60 without water irrigation (fire-holding period 1 hour);
  • EI120 – implies the use of water irrigation on the one hand, using the resources of deluge, or sprinkler systems to extinguish the fire in the building itself. In this case, the water flow is of the order of 0.08 liters of water per square meter per second (restrains the spill of fire for 120 minutes).
