Fire curtains for Windows

///Fire curtains for Windows
Fire curtains for Windows 2017-10-17T23:34:45+00:00

Description

Fire curtains FireTechnics E120-EI120 for Windows are used to prevent transfer of fire between floors of a building or between buildings. Usually mounted in the window openings to prevent the spread of fire and smoke and to protect people and property from fire.
Limits of fire resistance: E120 (without irrigation water); EI120 (when unilateral use of irrigation water from the existing sprinkler or deluge fire extinguishing systems of the building; water consumption not less than 0.08 l/m2 per second).

Description

Fire curtains FireTechnics E120-EI120 for Windows are used to prevent transfer of fire between floors of a building or between buildings. Usually mounted in the window openings to prevent the spread of fire and smoke and to protect people and property from fire.
Limits of fire resistance: E120 (without irrigation water); EI120 (when unilateral use of irrigation water from the existing sprinkler or deluge fire extinguishing systems of the building; water consumption not less than 0.08 l/m2 per second).

Description

Fire curtains FireTechnics E120-EI120 for Windows are used to prevent transfer of fire between floors of a building or between buildings. Usually mounted in the window openings to prevent the spread of fire and smoke and to protect people and property from fire.
Limits of fire resistance: E120 (without irrigation water); EI120 (when unilateral use of irrigation water from the existing sprinkler or deluge fire extinguishing systems of the building; water consumption not less than 0.08 l/m2 per second).

Fire-resistance:

♦♦ EI120 (unilateral use of water irrigation available from sprinkler or deluge systems PL-rotoline of the building, water consumption of at least 0.08 l/m2 per second);

♦♦ EI60 (without irrigation water).

Dimensions

Width, max: 4 m / 6 m

Height max: 1.5 m / 5 m

Depending on your needs we can manufacture fire curtains on the individual sizes, check with the Manufacturer.

Group of companies FireTechnics is an explosion diagram for fire curtains for Windows

Press and hold the mouse to rotate the picture. Move your mouse or hit “Play” below the picture rotated itself. Click now to close the hint scheme.

Press and hold the mouse to rotate the picture. Move your mouse or hit “Play” below the picture rotated itself. Click now to close the hint scheme.

Press and hold the mouse to rotate the picture. Move your mouse or hit “Play” below the picture rotated itself. Click now to close the hint scheme.

Specifications of fire-prevention curtains for the Windows

Fabric

When fire resistance EI120 (for irrigation water):

Material: Firetex 1100 (made in Germany)

Fabric weight: 660 g/m2.

Material thickness: 0.63 mm

Canvas single layer. The fabric is certified as non-flammable and non-toxic.

To obtain high durability when exposed to high temperatures within each fiberglass thread interwoven with thin stainless steel wire.

In the limit of fire resistance EI60 (without irrigation water):

Title: Firetex 60 (manufacturer Germany)

Fabric weight: 2500 g/m2

Thickness: 3 mm.

To obtain high durability when exposed to high temperatures within each fiberglass thread interwoven with thin stainless steel wire.

The inner layer of the leaf consists of thermosetting composite materials, which at 160-180 degrees Celsius expands to 50 mm and provide protection from heat flow. The fabric is certified as non-flammable and non-toxic.

Dimensions

Width, max.4 m.
Height, max.1,5 m.
For accurate sizes please contact the managers of the company FireTechnics, depending on Your needs we can manufacture fire curtains for the Windows on the individual sizes.

Box

Made of galvanized sheet steel 1.5 mm. both ends of the housing closed with lids in order to make the contour of integrity, as well as for the perception of torque tubular motor.

Color: any color scale RAL color or galvanized steel.

Guides

Intended for the direction of the fabric unwinding from the shaft,

made of sheet steel 2 mm thick (casing — 1.5 mm).

Color: any color scale RAL color or galvanized steel.

Important! fireproof curtain FireTechnics (Fireshield) for Windows arrive on site virtually pre-assembled condition, which greatly facilitates the installation of fire curtains, increases the speed and correctness of execution of mounting and commissioning works.

Drawings and options of installation of fire curtains for the Windows

If You need to get the blueprints, wiring diagrams and installation instructions, please click the link:

Get
Сертификат-Штора-Fireshield-EI-60-без-орошения

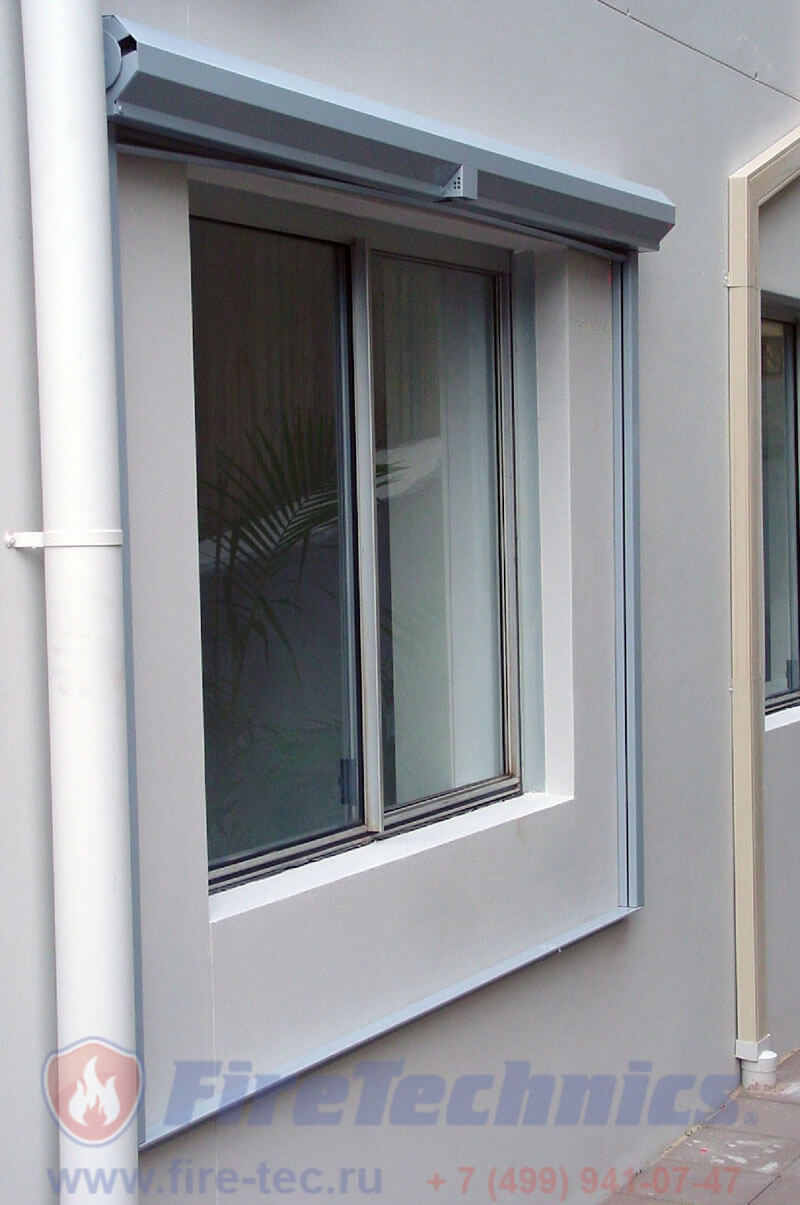

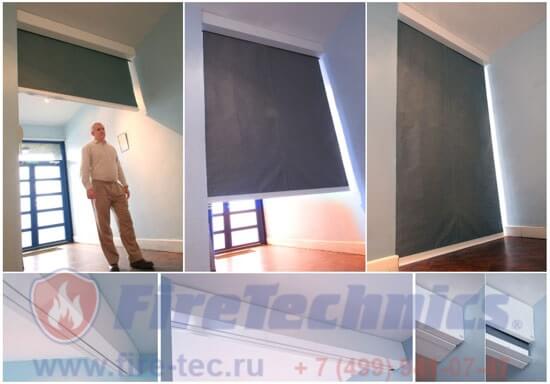

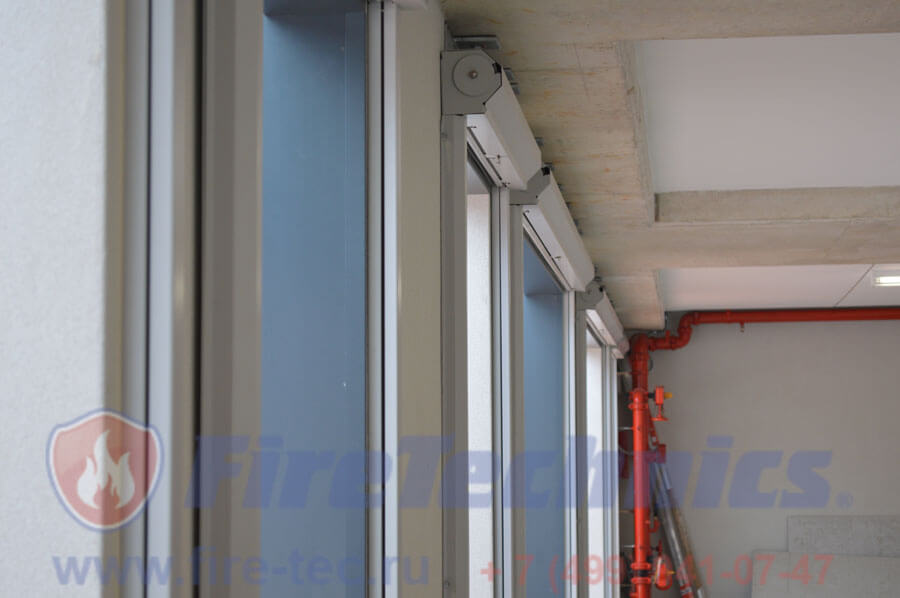

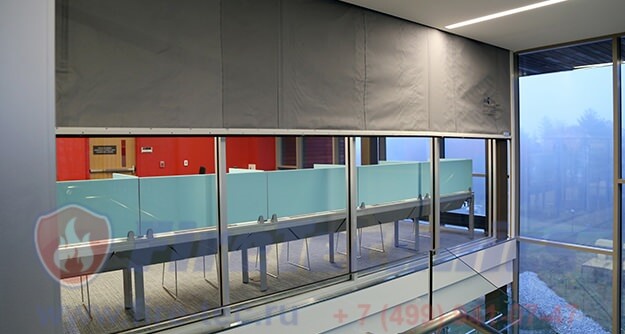

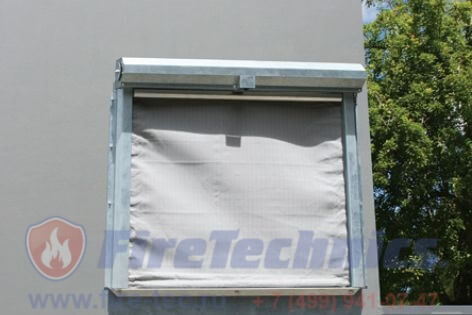

Photo fire curtains FireTechnics for Windows

Photo fire curtains FireTechnics for Windows

Video about FireTechnics fire curtains

About FireTechnics fireproof curtains for windows

противопожарные шторы для окон

Fire Technics Fire Shields for Fire Shield windows are designed to prevent the possibility of transferring flames between floors or buildings. Usually, they are mounted on window apertures of different size and purpose, in order to prevent the spread of combustion products and, thus, to protect property and people from the outbreak of fire. Such products become irreplaceable means of fire safety in any industrial enterprises, in office, warehouse, trade and other buildings where there is an increased risk of fire and damage to property and people.

Structurally, fire curtains for windows of St. Petersburg are made on the principle of roller blinds. The set usually includes an installation box, supplemented by a shaft with an electric drive, which is able to connect to the centralized fire safety and alarm system through the management unit, in particular, the canvas, guides, remote control, buttons – a key and a switch.

The possibility of making a window in different types of sizes and the variability of its installation make it possible to block windows up to six meters wide. Moreover, the complicated form and the inaccessibility of placement is not an obstacle to installation, if professionals do it.

автоматические противопожарные шторы для окон

In the event of an outbreak, the fire alarm system sends a signal to the fire station post, as well as to the automatic fire brigade for windows management unit, which automatically drops at a rate of approximately 12 cm per second. As a result, they localize a foci of smoke or fire.

Among the features of window fireproof curtains can be identified:

  • Width up to 8 meters at a maximum height of six and a sufficiently small depth of descent;
  • A small cost of fire-prevention curtains for windows when purchasing a product with a manual “platoon”, although much more convenience promises use of cocking with the help of a motor;
  • Such a curtain can be used in tandem with the usual opening windows;
  • It can boast a thermomechanical operation, or it can be lowered by applying the control unit and smoke detectors;
  • The activation of the fire detector causes the curtains to lower, by means of the Gravigen drive, without the use of electrical energy, solely due to the force of gravity to the ground acting on the lower bar;
  • In the event of power failure, fire curtains for Orenburg windows will remain operational for three days, which is facilitated by the presence of a built-in battery;
  • Depending on the size of the canvas, the dimensions of the box vary. So when the height of the opening is less than 4 meters, they are 20X22 cm in section, if its height exceeds 4 meters, then 30X33 cm.
противопожарные шторы для окон

Требования к конструкции и огнестойкость штор для окон

In accordance with regulatory documents, modern fire protection curtains must meet the following requirements:

  1. As the fire curtains for windows instruction , they can operate in the open position, but must be equipped with special equipment that guarantees automated closing in case of fire
  2. The design of fire barriers must be made of materials belonging to the category of non-combustible NG;
  3. Such window membranes should cover the openings qualitatively, on the whole area, in order to ensure the level of fire resistance indicated in their marking;
  4. fire curtains for windows, buy that can be used in Fire Technics, in a one-off form, if the opening is less than five meters wide, or a multi-shaft with a linen overlap, when the width is more than 5 meters;
  5. Compliance with the above requirements is always confirmed by regulatory documents. The certificate issued for fireproof curtains for windows confirms the conformity of the products with the current technical regulations, GOSTs and fire safety standards of the European model.

As for the limits of stability of fireproof structures, they can vary over a wide range, often with an increase in the level of resistance to burning by means of water irrigation. It implies installation on the structure of the water supply system, sprinkling water on the linen surface, thereby increasing the time of its flame resistance.

Currently, Fire Technics manufactures fire curtains for windows with a fire resistance limit :

  • Fireproof – EI60, EI120 and EI180;
  • Smoke protection – Е120.

In order to get a certificate of quality compliance, all manufactured fireproof curtains for windows are fire tested in accordance with GOST standards and requirements, because otherwise they can not be considered fireproof.

Огнезащитные преграды конвейерных приёмов

Production of fire curtains for windows: the main components of the structure

As already mentioned above, automated fire curtains for windows in Moscow, based on the limits of fire resistance, basically have one- or three-layer non-flammable and non-toxic linen, to enhance performance, additionally reinforced steel mesh. In individual canvases, a specialized composite material can be used that has the ability to expand at temperatures above 160 degrees, as a result, it provides increased protection against heat deluge.

The company produces two types of window fire retardant membranes with fire-resistant limit EI120 with water irrigation and with the level of protection EI60 without water reflux. In the first case, installing fire protection for windows means protecting window openings with a lightweight fairtex 1100 cloth weighing only 660 grams and having a thickness of 0.63 mm. In the second case we use fairtex 60 of German production, hanging about 2.5 kilograms square meter and having a thickness of 3 mm. It is the inner layer of the latter that includes a thermoactive material that expands to 5 cm. And capable of providing reliable protection against fire and heat spread.

Guides – with fire-prevention curtains for windows , they specify the direction of the fabric when unwinding from the shaft. They are made of steel, sheets of which have a 2-mm thickness. Color execution can be any.

The box – it is made of sheet steel, subjected to galvanizing, having a half-millimeter thickness. Its ends are closed with lids, sealing the structure and simultaneously contributing to the transfer of torque from the engine installed inside the shaft. The structure can be painted in any shade from the RAL color scale.

Fireproof curtains with a DISCOUNT only now!

ATTANTION!
Action «order with a guaranteed 5% discount» expires in exactly:
0
0
0
0
Days
0
0
Hrs
0
0
Min
0
0
Sec

Why should you choose fire protection curtains for windows from the manufacturer of “FireTechnics”?

  • All products produced in our company are certified in accordance with international requirements and norms of domestic fire supervision;
  • In the shortest possible time (not more than a month) we carry out the development of the project, the manufacture of fire barriers, the supply of equipment and installation of fireproof curtains for windows on objects of any complexity and magnitude;
  • We provided protection with anti-fire curtains for windows, doors and other openings to more than a hundred of the largest facilities on the territory of our country, confirming the technology and reliability of its products in practice;
  • The installation of our fire barriers by our own installation teams, as well as its maintenance, allow the fire safety systems to reliably serve for decades;
  • Our fire curtains for windows prices are lower than most competitors, and as practice shows, they are 100% effective in containing fire and smoke in case of fire, saving lives and property
